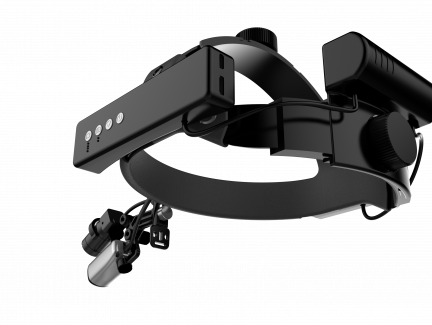

Head-Mount Wireless 4K Camera with 50,000 Lux Ledlamp
FM-308
Camera + Loupe (Option)
FM-308 Introduction
Applications
Benefits to Doctor
4K resolution is four(4) times the pixel count of full HD.
- 4K resolution video quality
- Doctor Eye-View area recording
- Wider recording area(Magnification 1.5 times)
- Can control LED intensity up to 50,000 Lux.
- Separate control LED and Camera.
- LED spotlight alignment with camera view area.
- Wireless, not limited by cabling.
- Instant Auto Focus, no need to adjust the working distance.
- Built-in Microphone, sync-up video with audio in one MP4 file.
- One-touch for Live Broadcasting.
Applications
Integrate with different type of LED headlight
- High-quality video(4K) resolution with audio(ACC)
- Wireless 802.11ac Camera
- With Mini-HDMI connector (video output)
- Instant Auto focus lens (10cm ~ 70cm)
- View Angle(Magnification Times): 3x, 2.5x, 1.5x
- Operating with
- Touch Buttons: Recording, Snapshot, View Angle
- Companion APPs(WIN10, iOS, Android, MAC OS)
- Live streaming through Fasmedo cloud(AWS server)
- Store video into internal memory(256GB)
- Include 5,000mAh battery pack
- Long working time: 3~5 hours
Key Features
- High-quality video(4K) resolution with audio(ACC)
- Wireless 802.11ac Camera
- With Mini-HDMI connector (video output)
- Instant Auto focus lens (10cm ~ 70cm)
- View Angle(Magnification Times): 3x, 2.5x, 1.5x
- Integrate with Continuous Knob control ledlamp intensity: 4,800 ~ 50,000 Lux
- Keep remember last power off LED Lux
- Operating with
- Touch Buttons: Recording, Snapshot, View Angle
- Companion APPs(WIN10, iOS, Android, MAC OS)
- Bluetooth foot pedal for recording and picturing
- Live streaming through Fasmedo cloud(AWS server)
- Store video into internal memory(256GB)
- Long working time: 3~5 hours
Doctor Eye-View Recording
working distance: 30cm

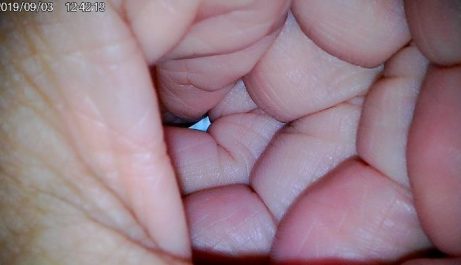

Great Depth of Field

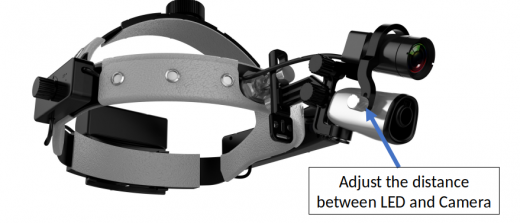

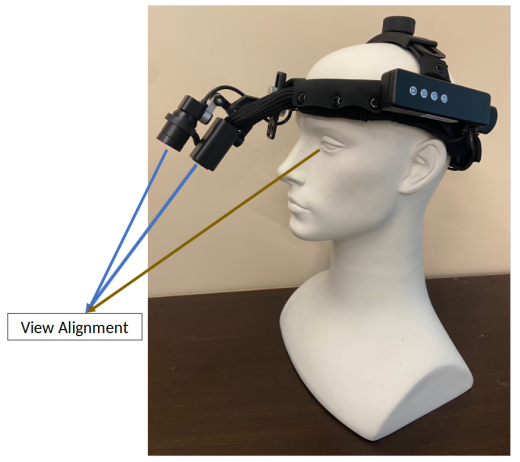

LED & Camera View Alignment
LED Spotlight guide the recording area

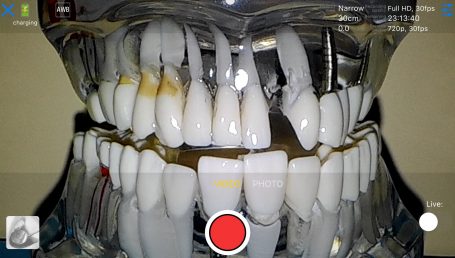

Field of View
FM-308
3x
2.5x
1.5x
working distance: 30cm

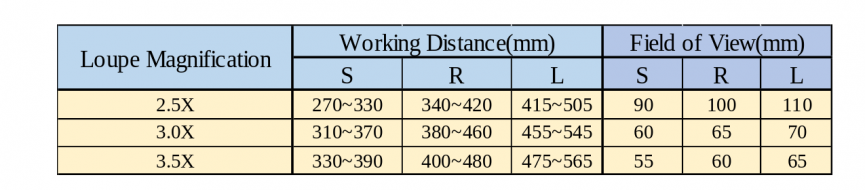

Loupe Spec.

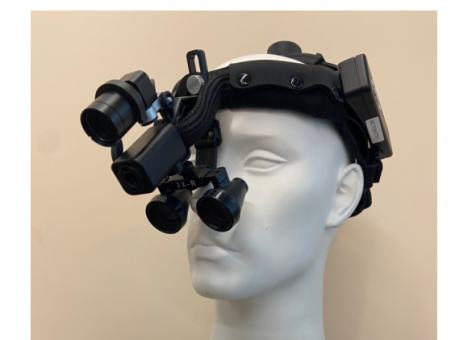

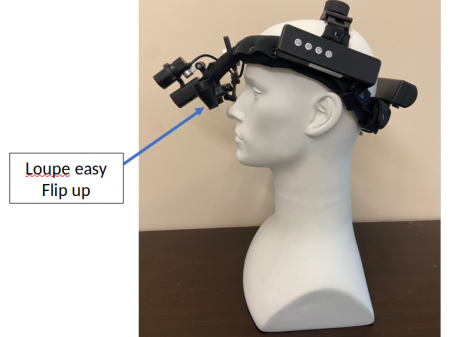

FM-308 With Loupe
FM-308 Function Videos
Live Broadcast with Windows App

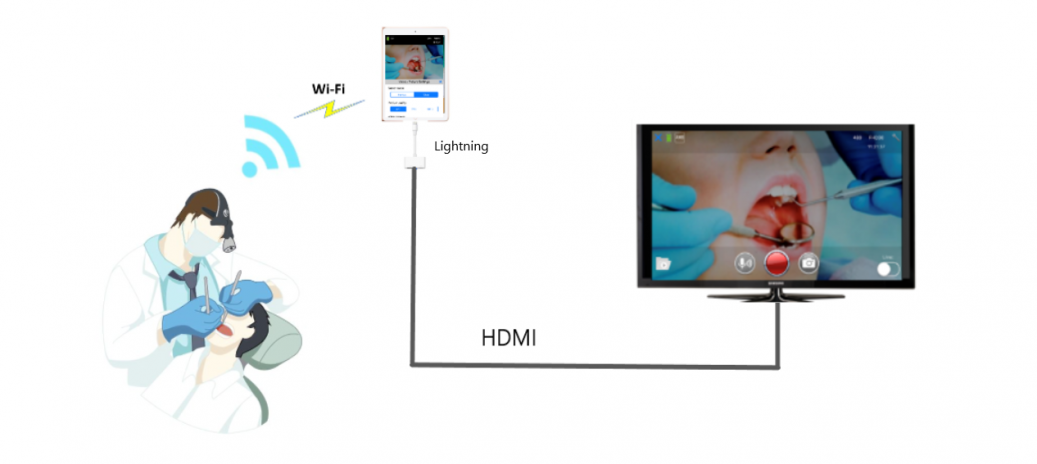

Live Broadcast with Smart Device
Use Cases
Dental (1)
Dental (2)
Dental (3)

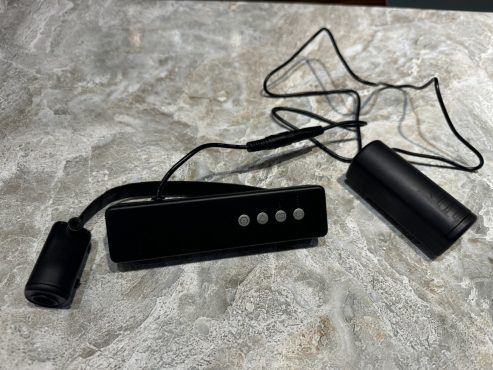

Gallery
